Make Your Own Antler Handle With Changeable Firesteels
Have you ever made or owned something that you felt was irreplaceable and choose not to use it, rather than scratch it or damage it in some way?
That’s exactly how I felt about my antler handled firesteel, it was beautiful, but pretty much useless because I carried it around for show, but always had a “secondary”, cheap firesteel with me, the one that I actually used.
Then the idea came to me, why not make an antler handle with changeable firesteels, if one gets used up or breaks, I can unscrew it from the handle and replace it with another one to have a brand new “visually appealing” firesteel, instead of just discarding the valuable handle and buying or making a new one.
So, let’s begin:

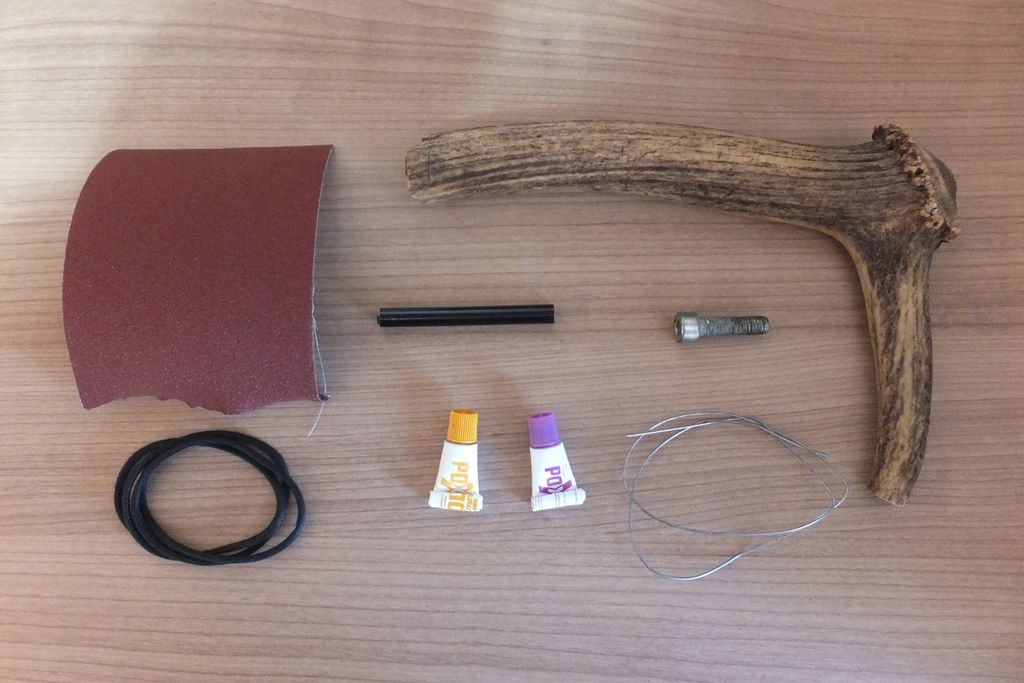

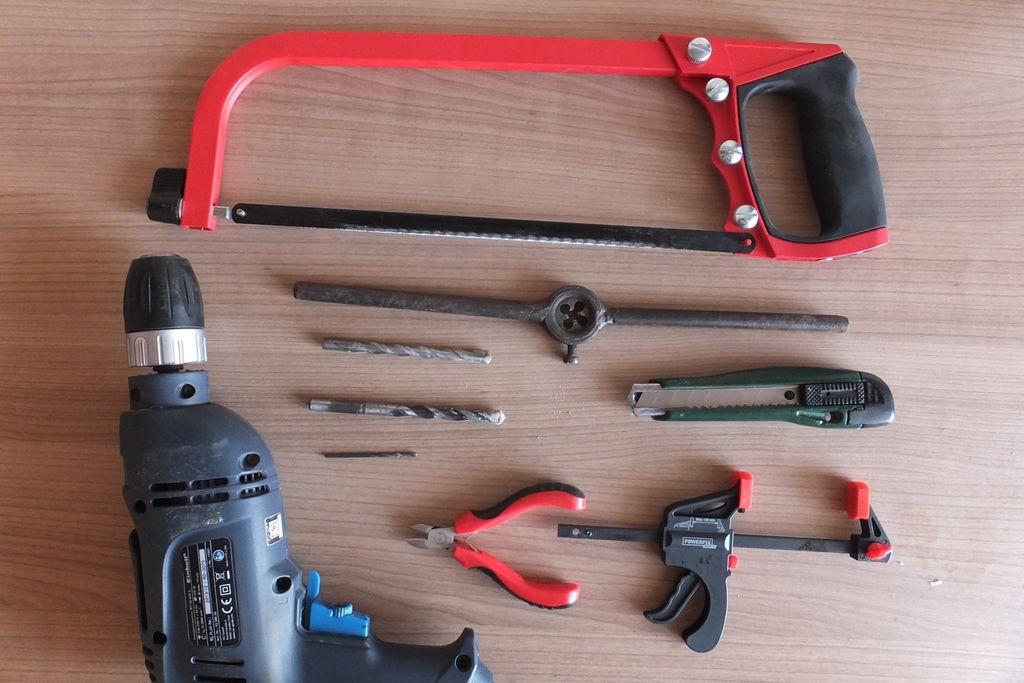

Step 1: Tools and Materials
- Hacksaw (or at least the blade)
- Drill bits (I used a 2.5mm and 10mm one)
- Utility knife
- Threading die (I used a 8mm one)
- Cutting pliers (the ones with cutting tip are recommended)
- A small clamp (or vise)
- Antler (just a small piece)
- Firesteel (I used a 8cm long, 8mm diameter one; use at least the same size or bigger)
- Bolt (I used 8mm diameter)
- Two component epoxy (I used Poxipol)
- Steel wire (0.8 mm)
- Shock cord (paracord or any cordage that you fancy, optional)
- I’m sure you already noticed a pattern with the diameters, if not, here it is: you will need the same diameter threading die and bolt as the firesteel and a drill bit one size bigger. I used an 8mm diameter ferrocerium rod and, accordingly, an 8mm die, an 8mm bolt and a 10mm drill bit.
Step 2: Preparing the Handle
I think the pictures and annotations suffice in explaining the process so, I’m going to use this space for some tips and ideas:
Any piece of antler is good for this project, however, it seems that the tip and base of the tine looks better than other parts.
You will see a lot of sanding going on in this article, it’s not because I like antler dust or sanding in general, but the fact is, that sanding is the most important, I could say only, factor that influences the overall look of the handle.
Please continue reading below
Step 3: Preparing the Ferrocerium Rod
When sanding the rod’s end don’t be too vigorous, you don’t want to start a fire.

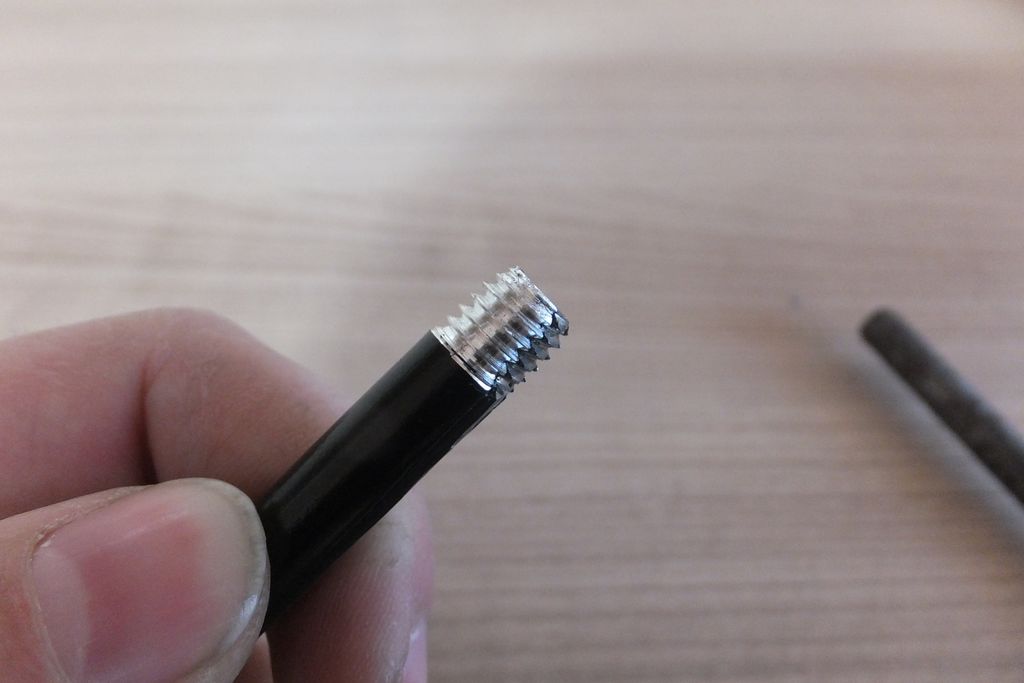

You might need a vise for cutting the thread in the ferrocerium rod; the firesteel I used was a composite, magnesium and ferrocerium, and as magnesium is pretty soft I managed to cut the thread using just a pair of pliers to hold it.
Always wrap a piece of cloth around the rod when you hold it with pliers or put it in a vise, it prevents scratching the protective coating.
Step 4: Assembly
When heating the bolt make sure you only heat the head and let the heat slowly propagate through, cool it down as fast as you can when you see the smoke (it would probably be better to cool is down just before it starts to smoke).

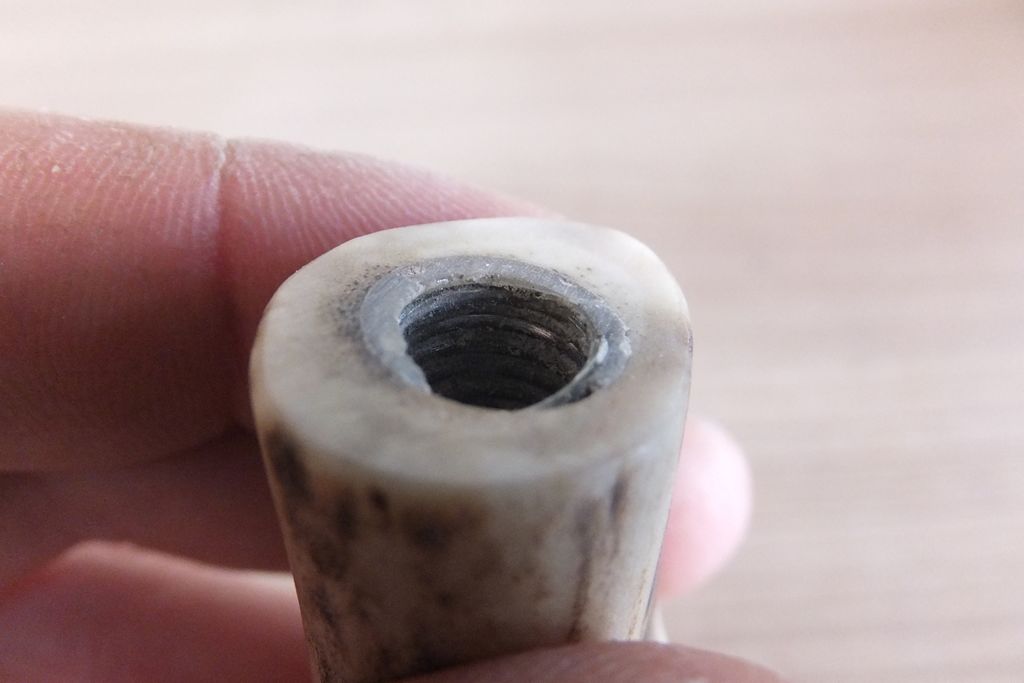

The threads inside the handle may be a bit tight because of glue residue, try screwing in/out the bolt a few times to clear them out.
After you put it together try resisting the urge to repeatedly screw in/out the rod, the threads will wear down because ferrocerium is relatively soft.
Thank you for reading, have fun making and using your own.
