Re-scaling a Spartan Swiss Army Knife with E-waste – DIY

By Paul Pinkerton
Publish Date:


Re-scaling a Spartan Swiss Army Knife with E-waste – DIY

Paul Pinkerton

Swiss Army Knife needing repair
Swiss Army Knife needing repair

SHARE:


We’ve all got or seen an old SAK somewhere about, if it’s in need of some TLC has a read of this and give it a go to create something new but rather cool.

My dad gave this Spartan to me back in 1992 and I’ve been carrying it on my key chain for my daily use. Although I have many others SAK’s with me, this one seems special to me.

Bent old scale

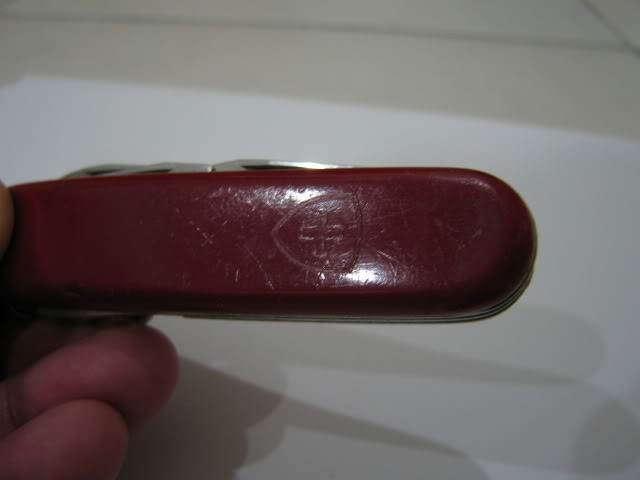

Faded logo – can some one tell me what generation logo is this?

img_6389

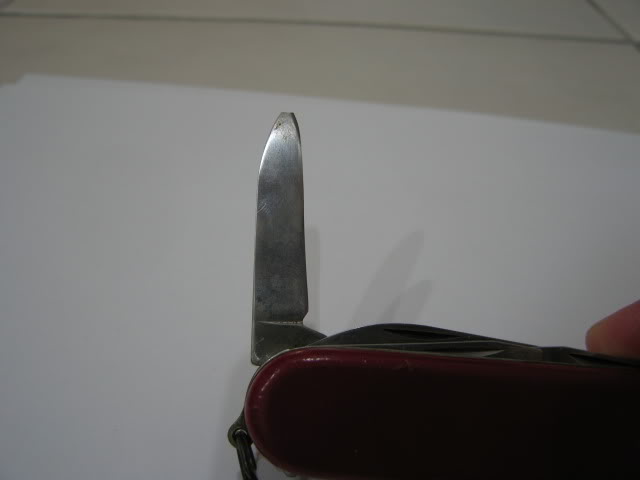

Chipped off the small blade

img_6390
First of all, remove the old scale with my P4 blade

img_6394

The inside of the scale – I glued it with Dunlop glue long time ago.

img_6396

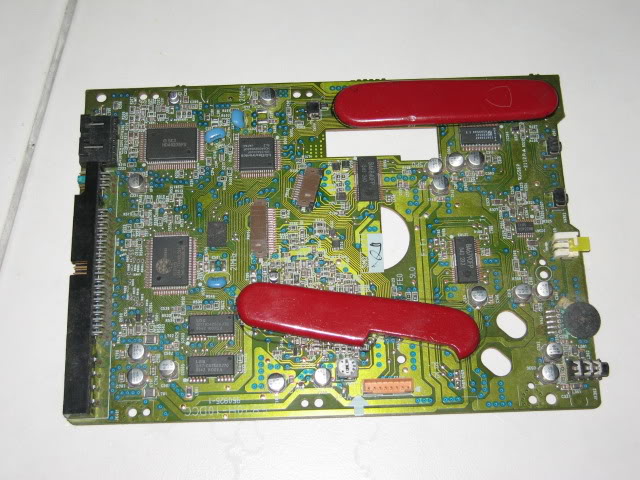

Next, I pulled out the PCB from a used DVD-ROM and traced the scale on it.



img_0032

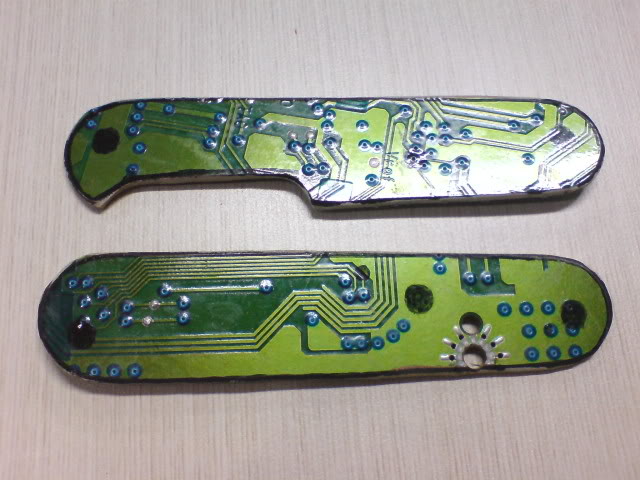

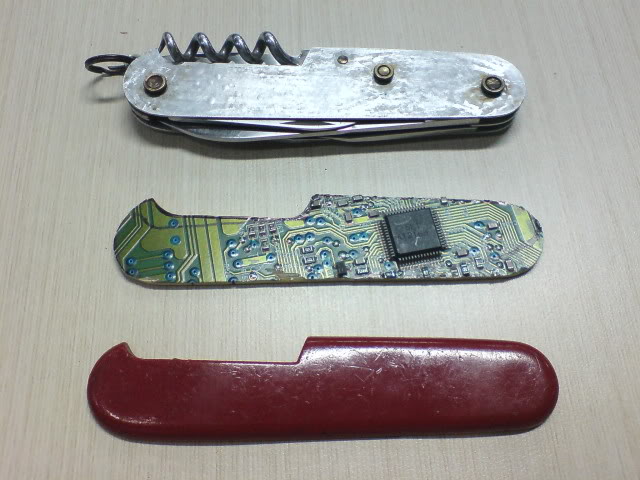

Made a rough cut.

dsc02629dsc02627
Ground out to -1mm size (to be explained later)

dsc02634

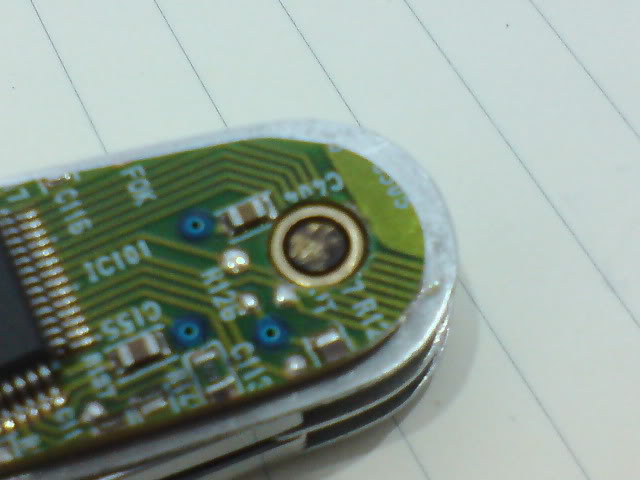

Drill thru PCB

dsc02638
Next, I prepared the mold for the new scale using 5mm thick PVC board

dsc02632

Pasted with double sided type to hold in position

dsc02641

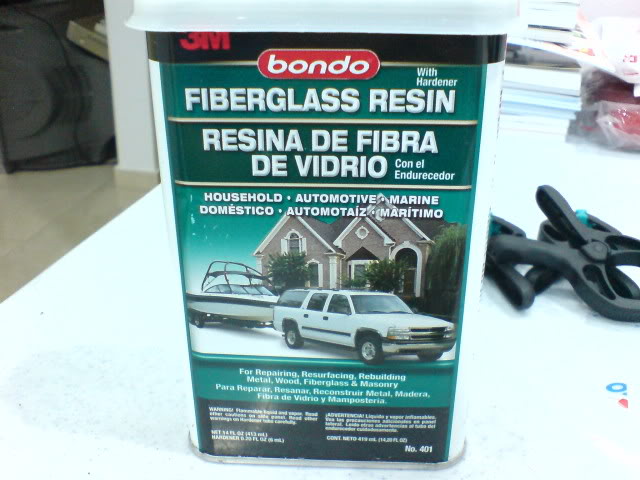

Prepared the resin using this.

dsc02645

Into this

dsc02651

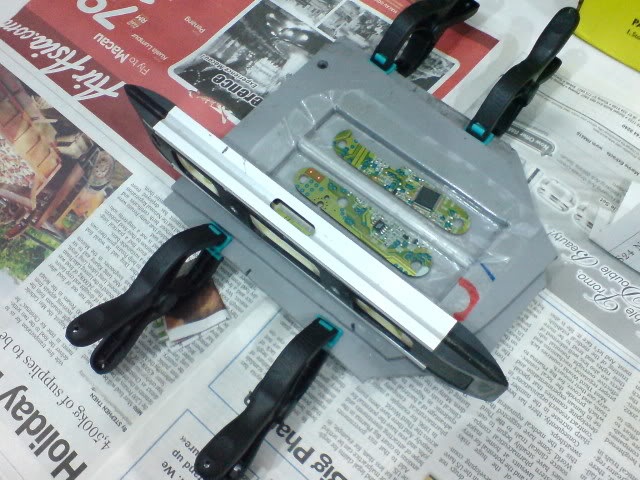

Make sure it is water levered for uniform thickness

dsc02646

Also, make sure the surface which contact to resin is free from oil or water, or you will have yourself this

dsc02674

The white color area looks like not fully bonded with resin.

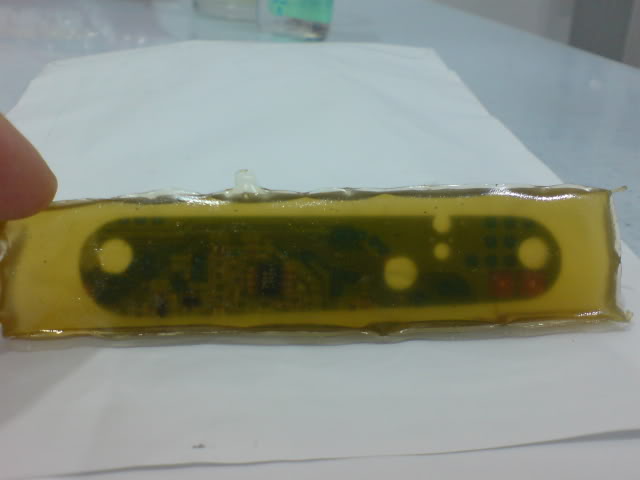

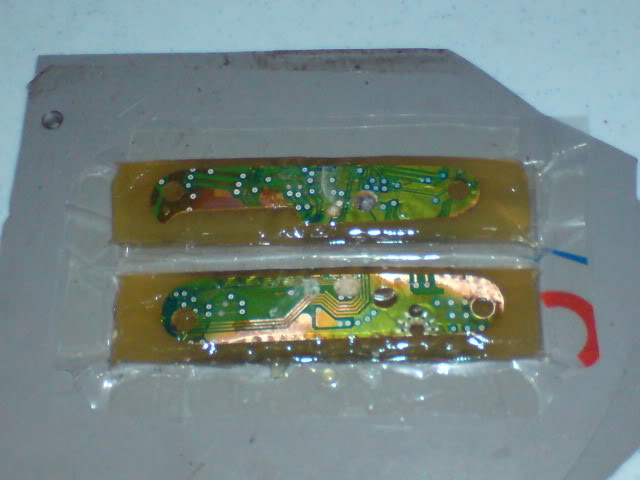

The next morning it turns to this ugly looking chocolate bars

dsc02657dsc02654

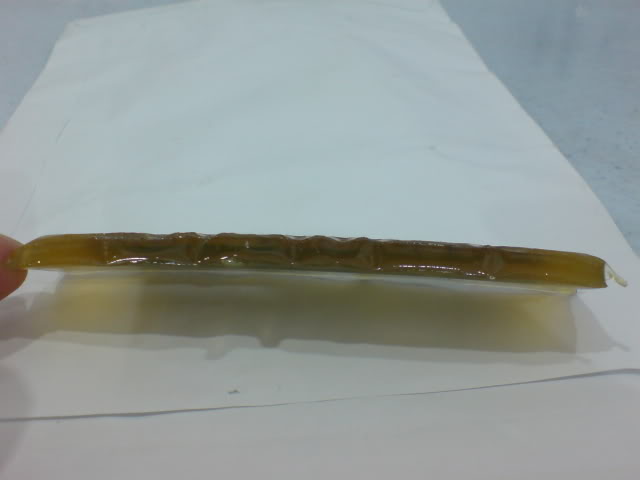

It warped during the drying process, and this required a lot of grinding later

dsc02653

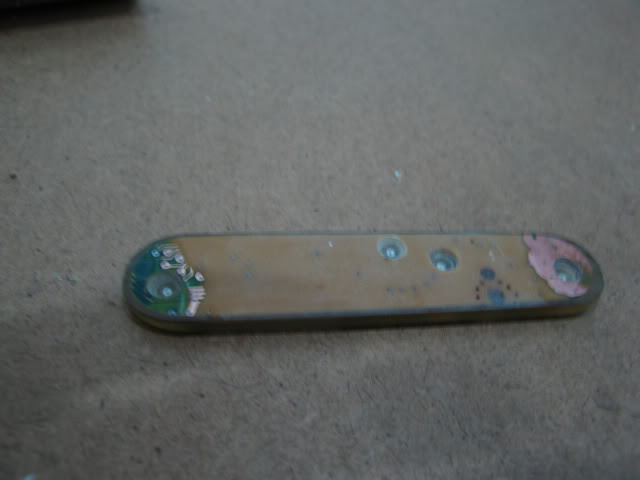

More grinding on the center area to compensate the warp phenomenon.

img_0037img_0035
** Notice that the -1mm? I want the resin to fully cover the surround so that there will be no chance for the PCB to be exposed.
** I skipped a lot of photos for 2 hours of grinding and polishing job, I left my camera behind

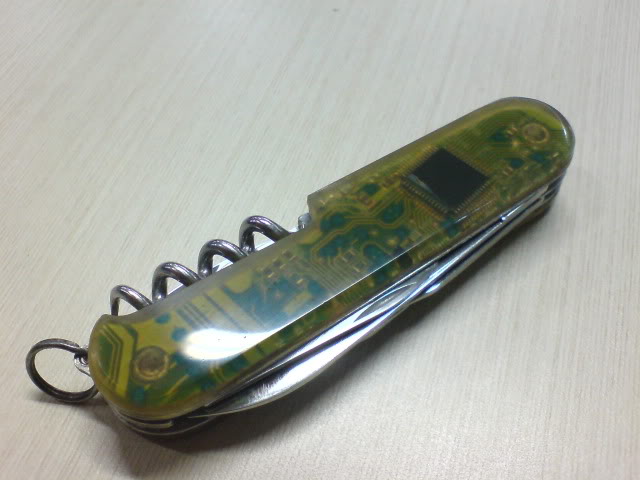

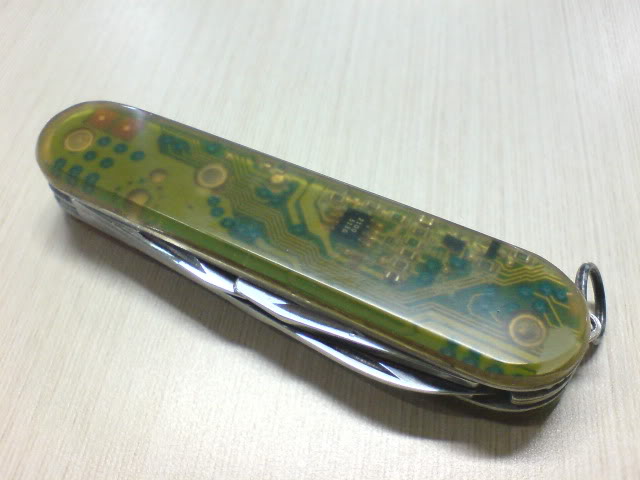

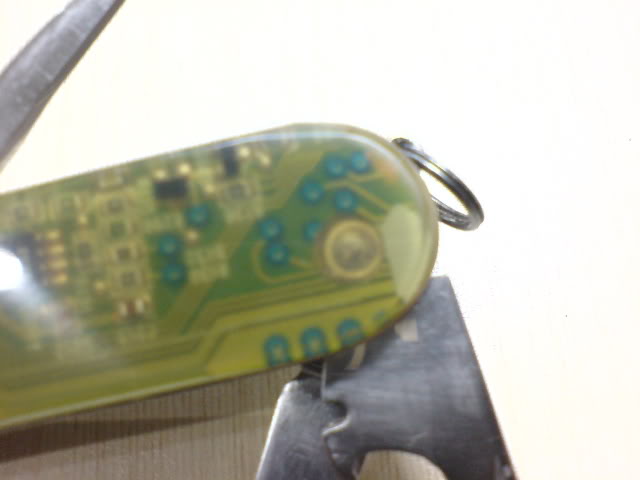

Finally, with some epoxy and another 12 hours of drying time, I made myself this:

dsc02658dsc02660dsc02671dsc02670

Next, I will find myself some time to get all the blades and tools polished to mirror finish.
